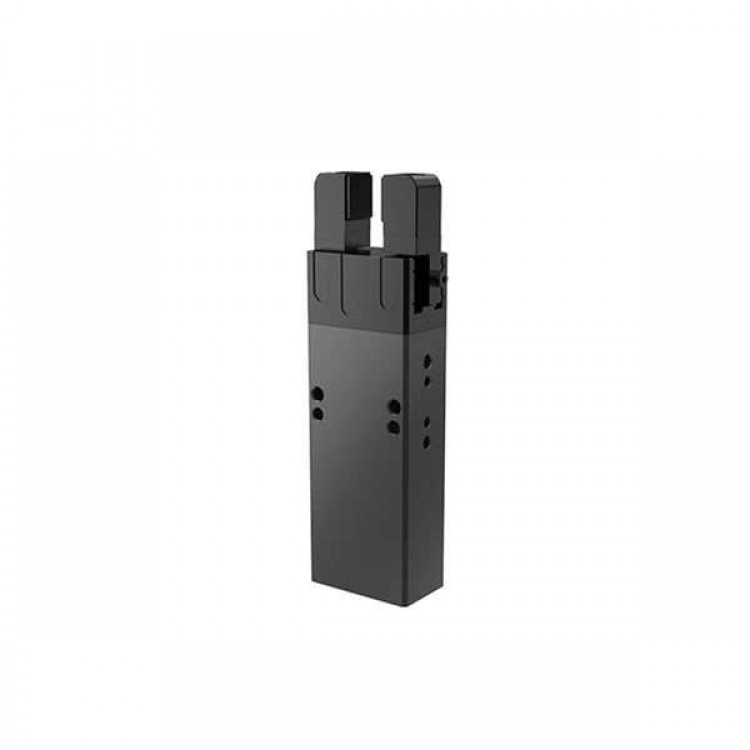

Chengzhou industrial slim-type electric parallel gripper DH-Robotics PGE-15-10

Description

• Small size which is flexible for installation
• Force, stroke and working speed are adjustable
• Smart feedback on gripping status
• Precise Force Control
• Fingertips can be replaced

Small size | Flexible installation

The thinnest size is 18 mm with compact structure, supports at least five flexible installation methods to meet the needs of clamping tasks & saves design space.

High Working Speed

The fastest opening and closing time can reach 0.2 s / 0.2 s, which can meet the high-speed and stable clamping requirements of the production line.

Precise Force Control

With special driver design and driving algorithm compensation, the gripping force is continuously adjustable, and the force repeatability could reach 0.1 N

What's Included

Gripper*1

RS485 module*1

Cable*1

Installation screw kit

CONTROLLER*1

Specifications

Gripping force: 6~15N

Stroke: 10mm

Recommended workpiece weight: 0.25kg

Repeat accuracy (positioning): +_0.01 mm

Opening/closing time: 0.2s / 0.2s

Noise emission: under 60 dB

Rated voltage: 24 V DC +_ 10%

Rated current: 0.1 A

Peak current: 0.22 A

IP class: IP 40

Recommended environment: 0~40 Celsius, under 85 RH

Communication method: Standard: Modbus RTU (RS485), Digital I/O

Optional: TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT
